Reynaers CP 130 sliding door: a new large-size sliding system

NEW: CP 130 large-size sliding door
Combining sliding, lift-and-slide, single-track, double-track and triple-track systems in a single design, the CP 130 sliding door presented at Artibat proves its quality and exceptional robustness. Its exceptional dimensions will appeal to specifiers.

NEW: CF 77 folding door system
In perfect step with the major architectural trend that breaks down the visual boundaries between indoors and outdoors, Reynaers presents the CF 77 folding door system, a product combining functional design and cutting-edge technology.

CP 130: the choice of aesthetics and performance!
To meet the requirements of each project, in new builds as well as renovations, Reynaers offers a wide range of high-tech systems, such as the CP 130 large-size sliding door. The latter offers high performance in terms of insulation and security and benefits from all the qualities of aluminium.

Combining sliding, lift-and-slide, single-track, double-track and triple-track systems in a single design, the CP 130 sliding door presented at Artibat proves its quality and exceptional robustness.
Thanks to its enhanced insulation (Uw 1,4 W/m2K) and the possibility of incorporating glazing up to 42mm with a weight of 300kg, the CP 130 is suitable for a wide range of applications.

Exceptional performance!
The CP 130 sliding door is designed for large dimensions: up to 2,70m in height. Its lift-and-slide hardware system allows easy operation of sashes weighing up to 300kg. It is also distinguished by:

- very robust assemblies that support large dimensions,
- single-track, double-track and triple-track applications,
- stainless steel tracks and bearings,
- a lift option for double-track and triple-track applications,
- glazing thickness up to 42mm,
- a weight of 300kg/vantail,
- a double perimeter seal, compressed in the closed position,
- a thermal break provided by crimped polyamide strips for enhanced insulation (up to Uw 1,4 W/m2K),
- a burglary-delaying solution through the integration of specific profiles (WKII),
- a reduced-mobility option compliant with DTU 36.5 and CSTB guidelines,
- a sliding insect screen option for even more comfort.

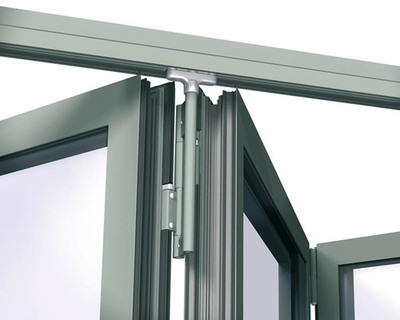

Reynaers' brand-new CF 77 folding door system is both a technical and aesthetic solution, for commercial or residential use.

CF 77: opening up to the outdoors while letting the light in!
CF 77 folding doors give a facade character while letting light in. When open, they erase the transition between indoors and outdoors. They thus meet the major architectural trend that integrates and blends interior and exterior spaces.

To meet all aesthetic requirements, CF 77 folding doors are available in 2 versions:
- a functional style (CF 77) with sober, symmetrical profiles,
- the Slim Line (CF 77 SL) with very slender profiles.

Remarkable features!
CF 77 folding doors combine functional design and cutting-edge technology:

- large sashes (up to 1,20m wide and 3m high),
- possible combinations from 2 to 8 sashes,
- opening inwards or outwards, as chosen at installation,
- 3 possible floor connections: fully recessed, low threshold with concealed water drainage, or rebated folding door for optimal wind and water tightness,
- glazing thickness up to 63mm for Softline (SL) profiles,
- a weight of 120kg/vantail,
- enhanced thermal insulation (up to Uw 1,7 W/m2K).
